ENGINEKIT K007 One-way Piston Vertical Steam Large Cylinder Piston Steam Engine Model Kit Education Adult Kids

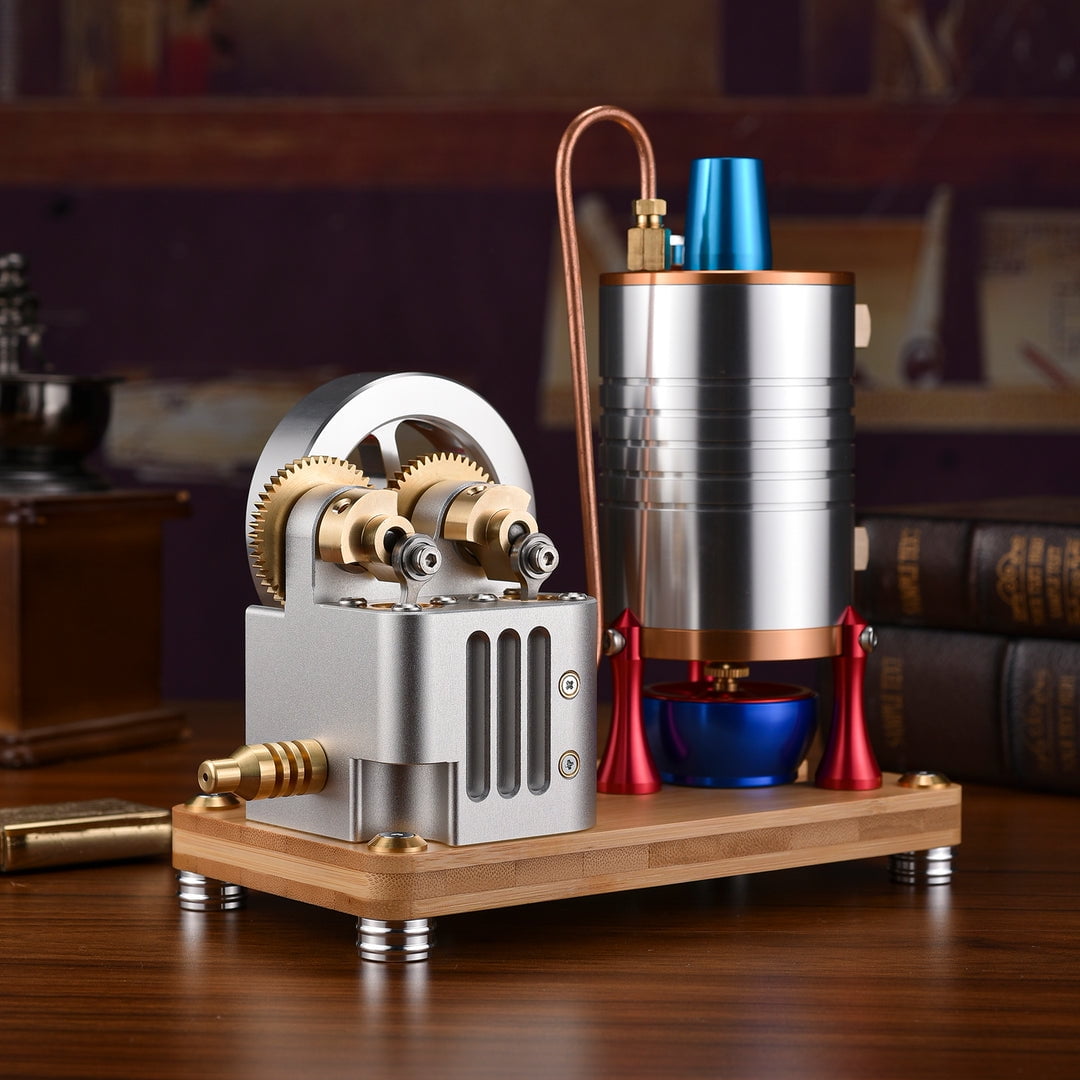

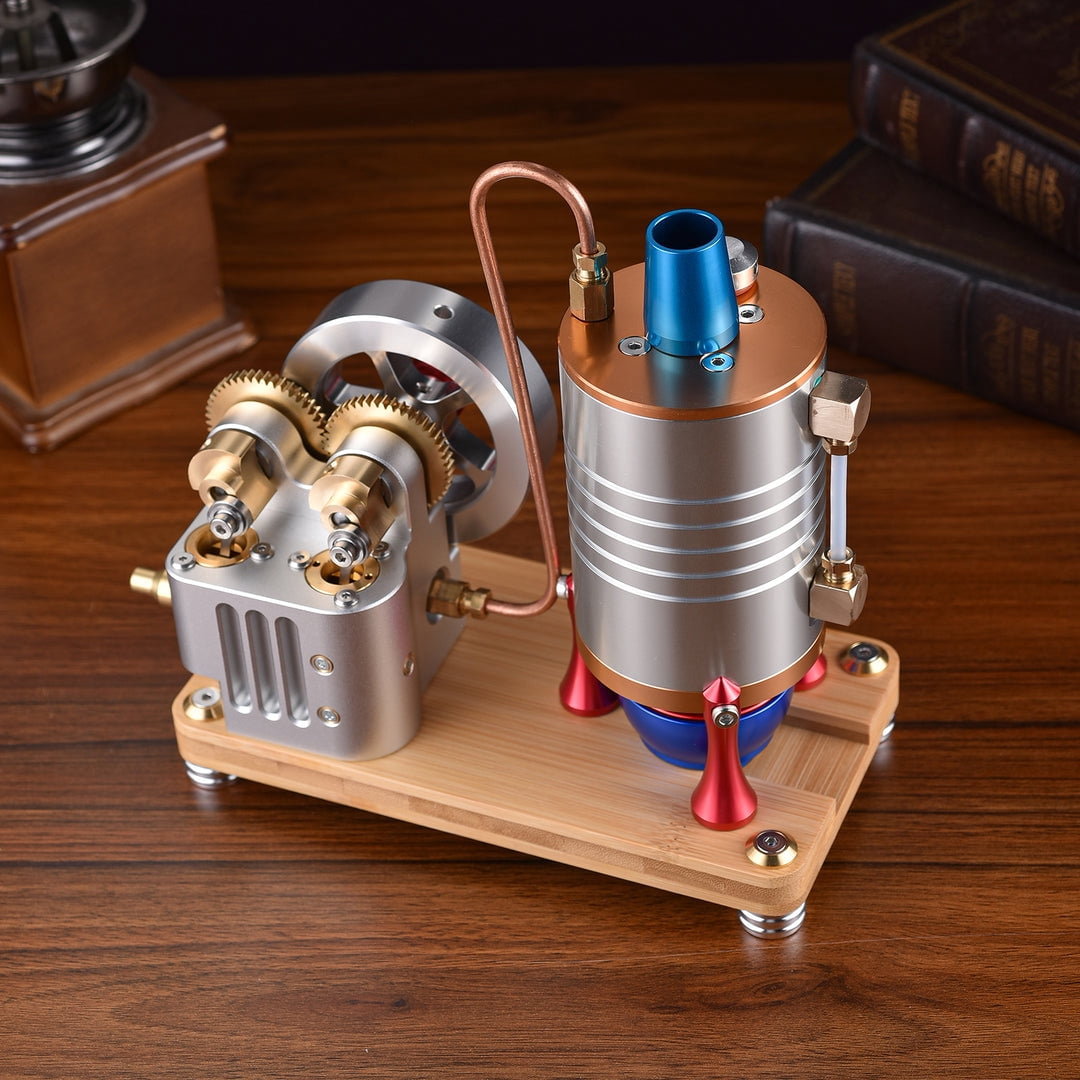

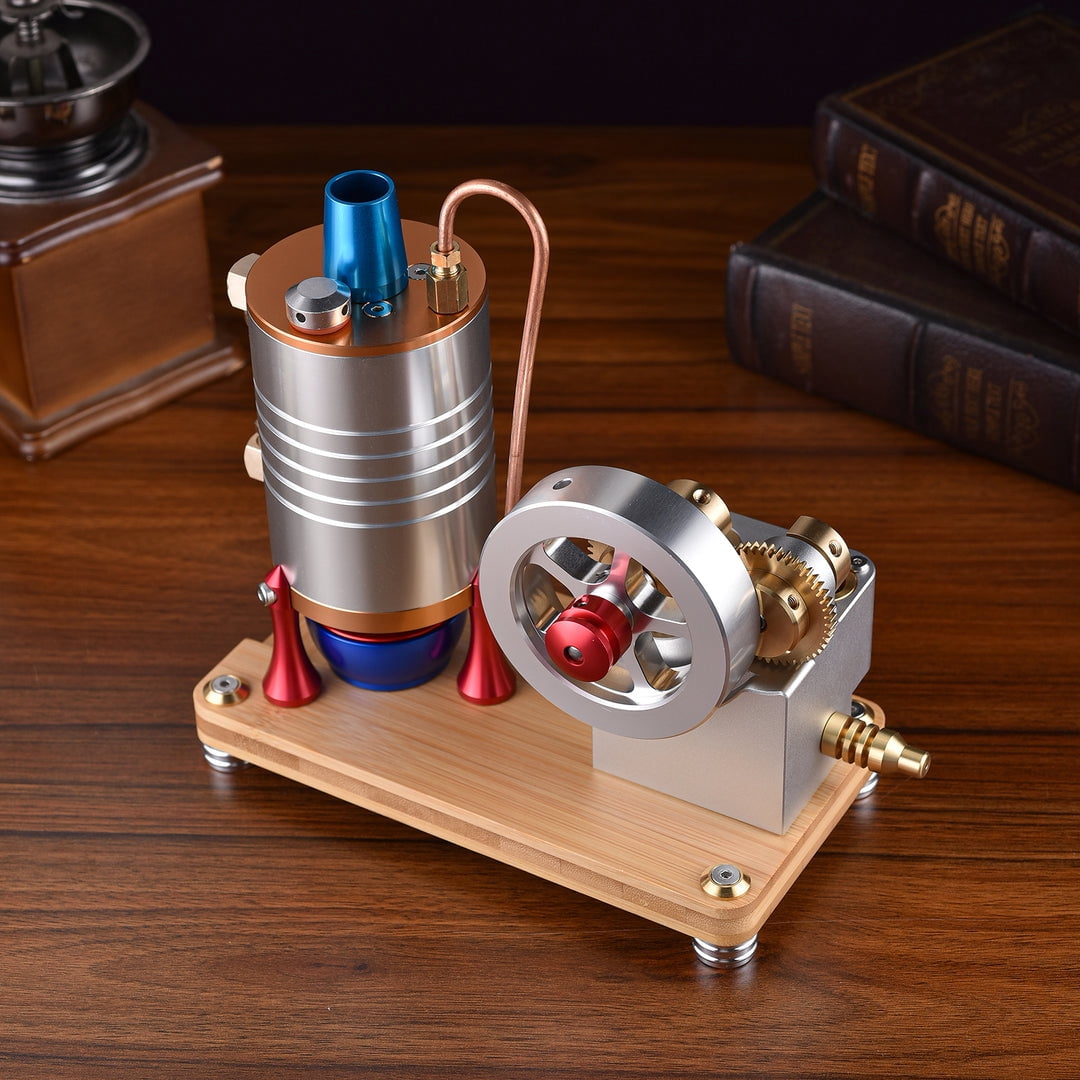

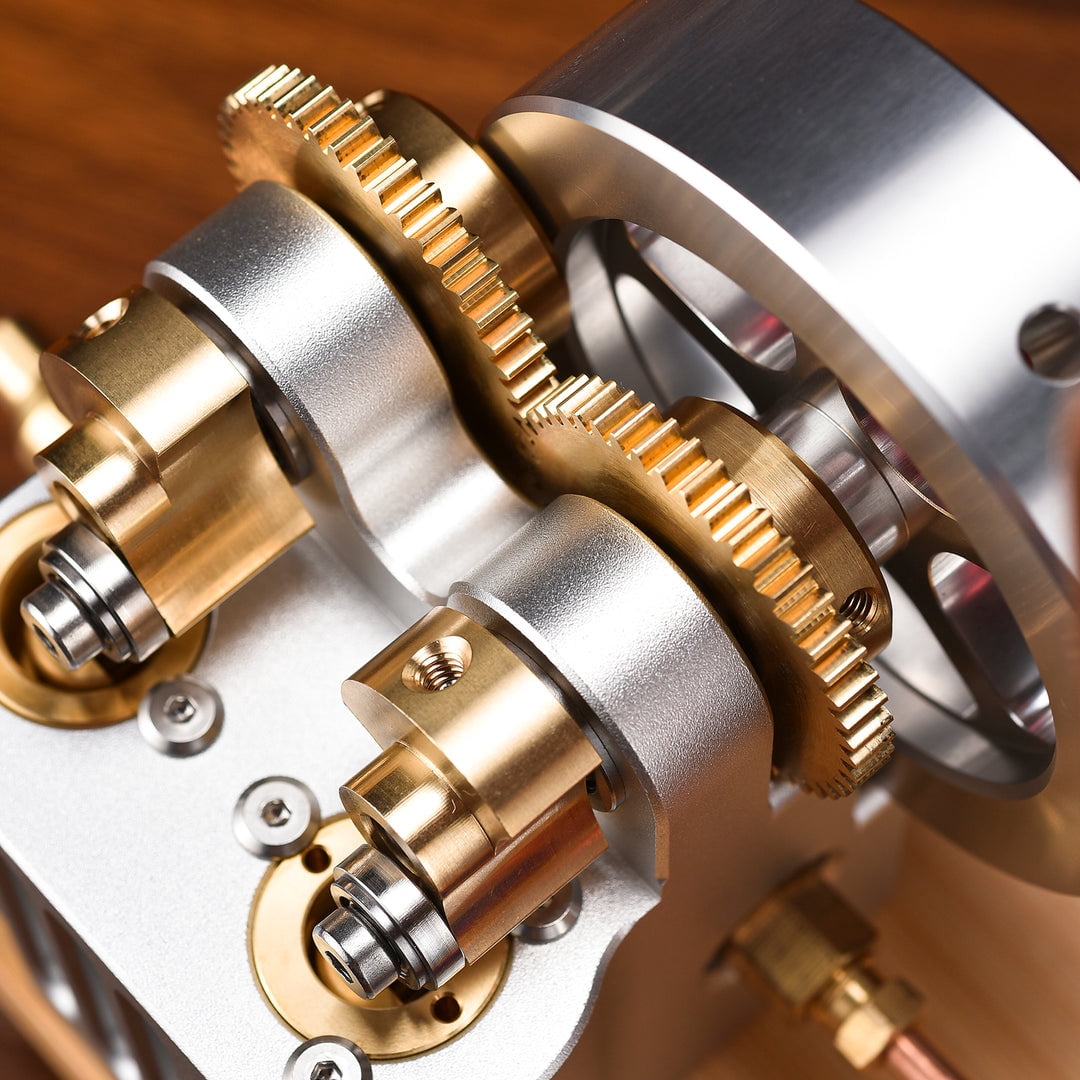

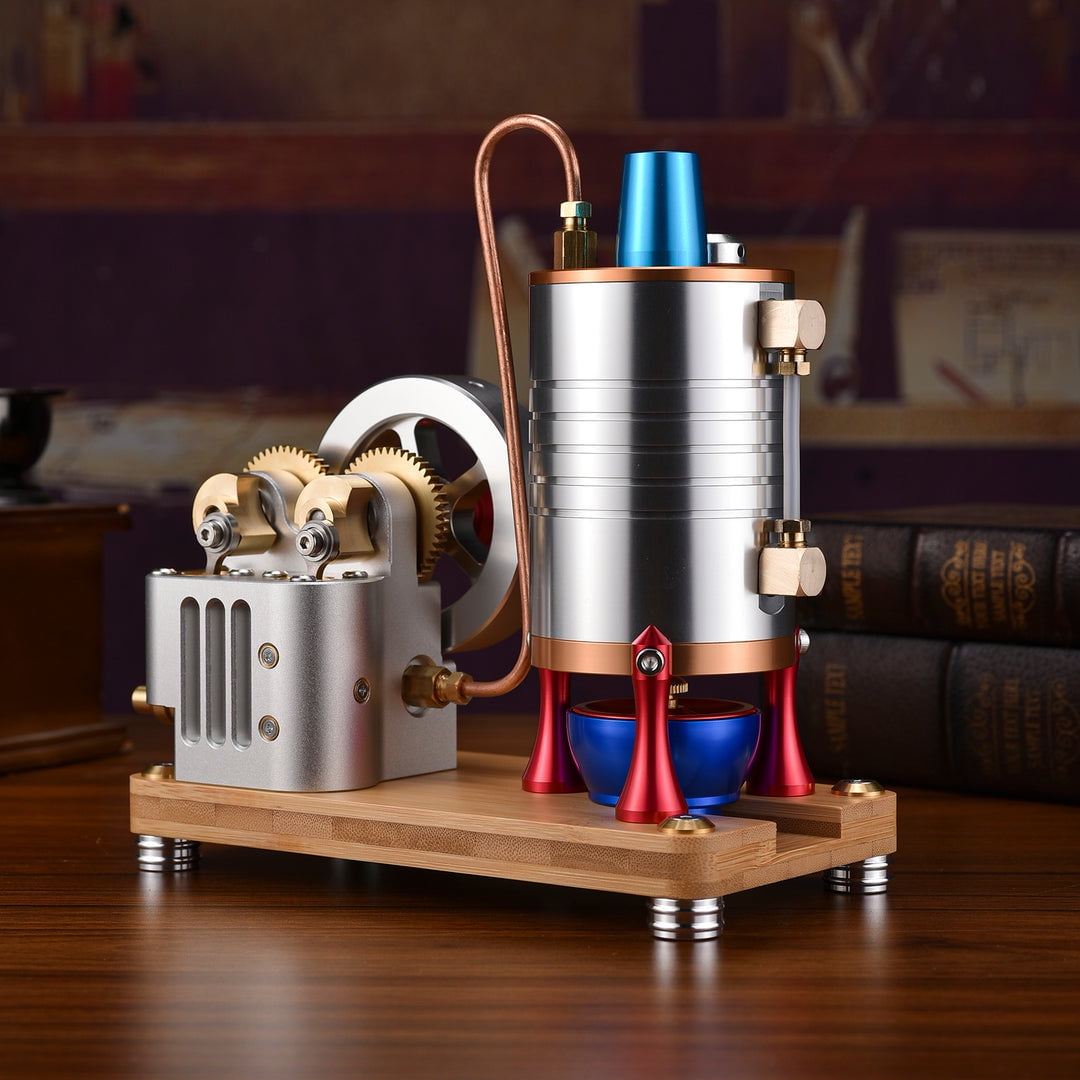

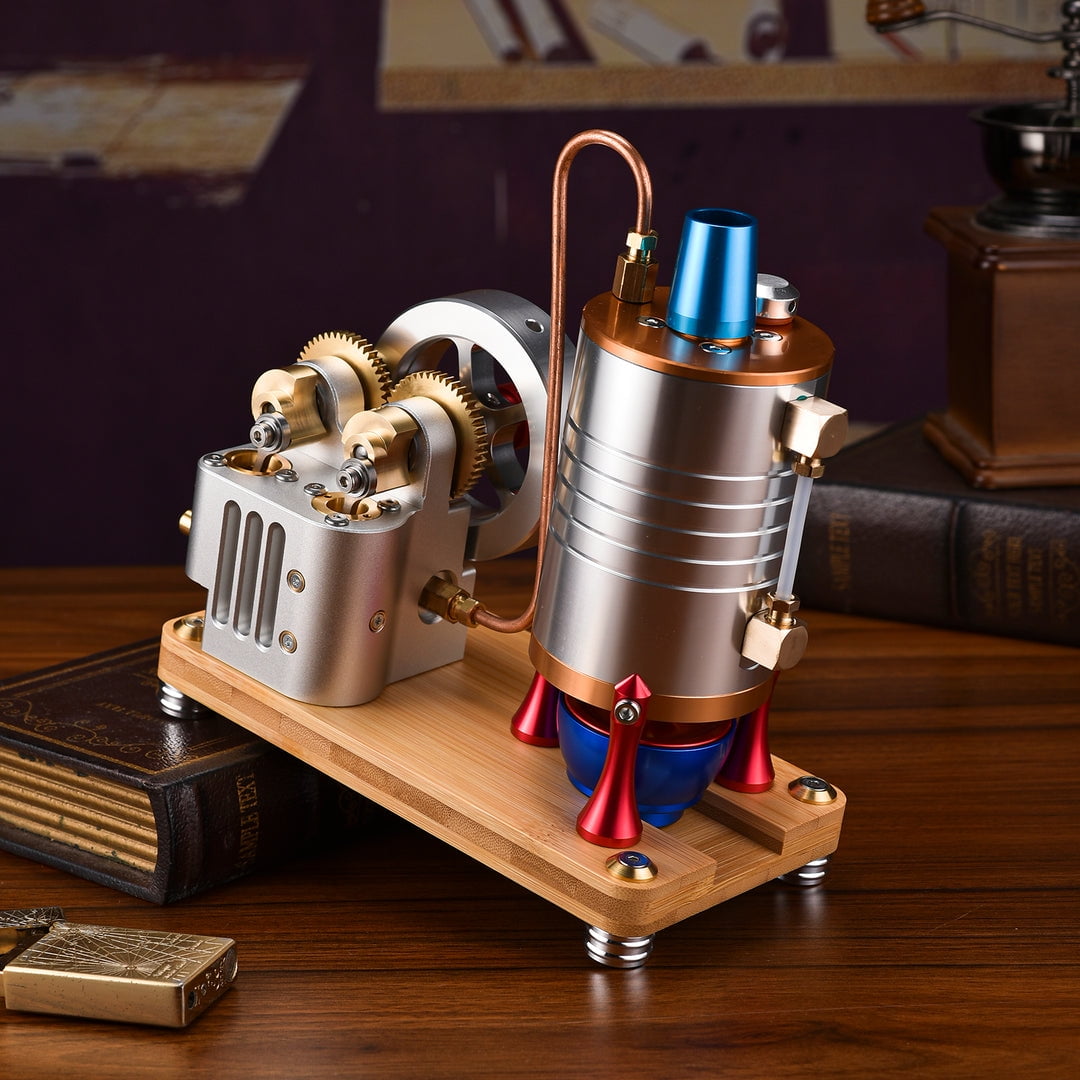

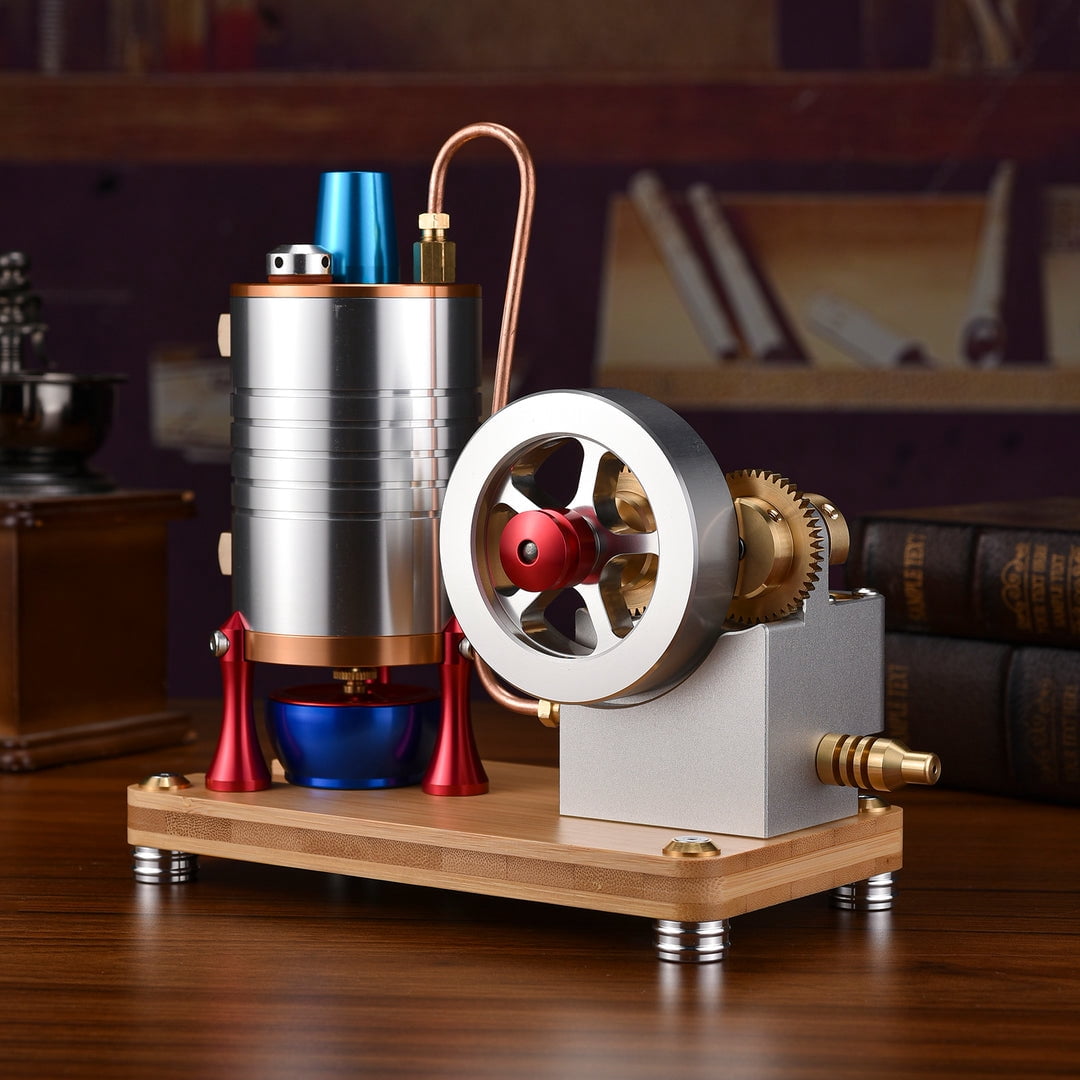

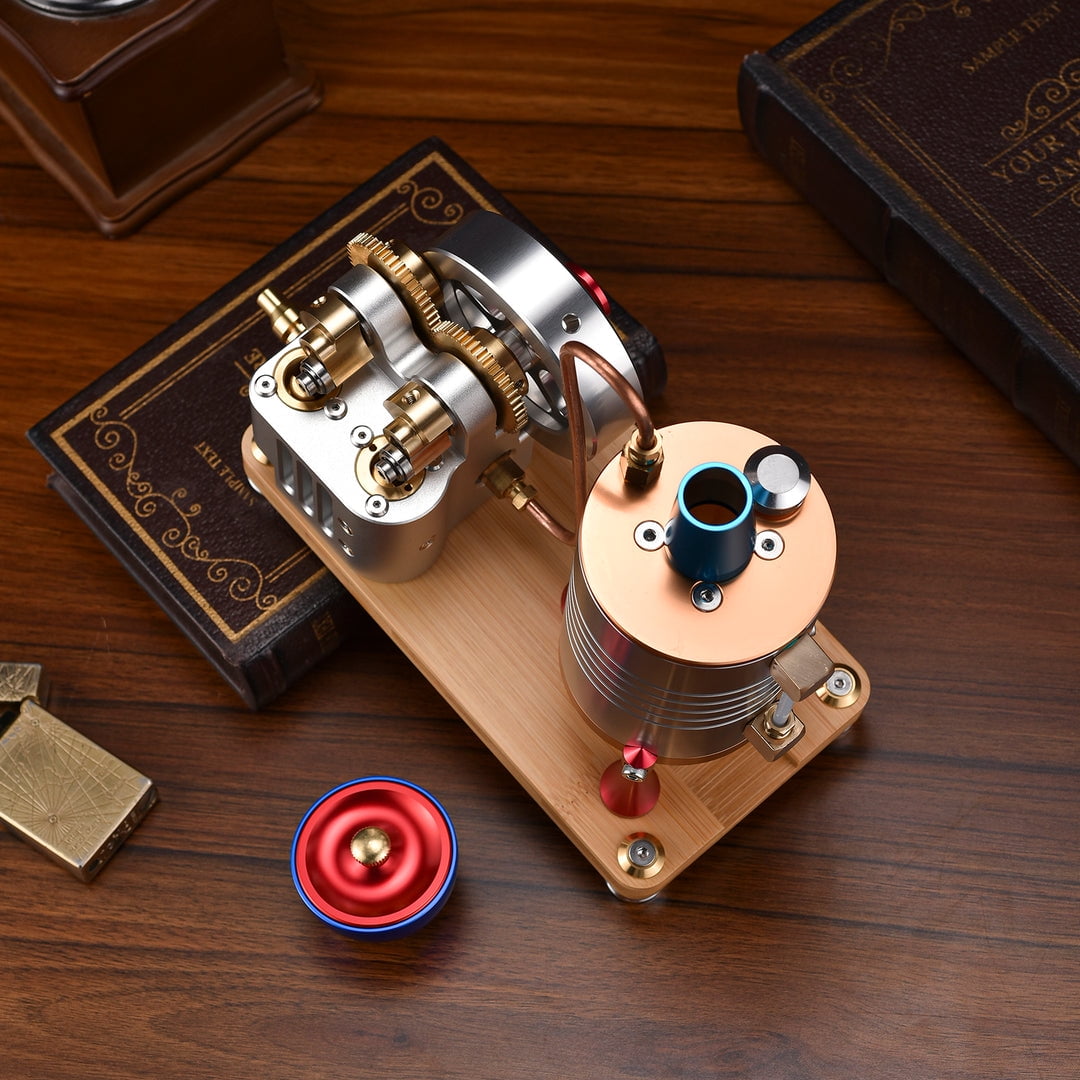

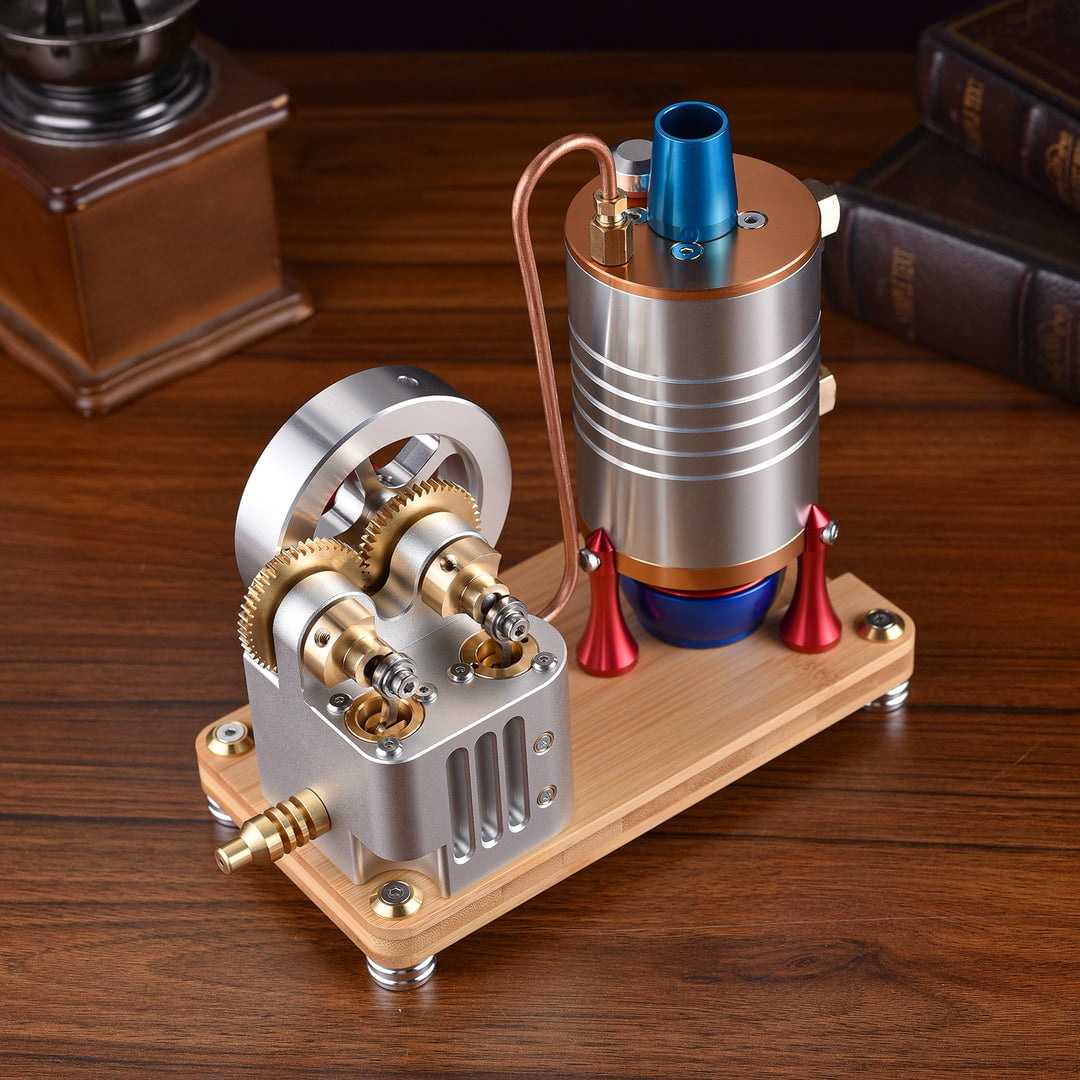

K007 One-way Piston Vertical Steam EngineLarge Cylinder Piston Steam Engine-Build Your Own Engine The world's first steam engine was invented by the ancient Greek mathematician Hero of Alexandria (Hero of Alexandria) in the 1st century A.D. steam ball (Aeolipile), which is the prototype of the steam engine. K007 is a one-way piston vertical steam engine, the machine is equipped with a set of vertical boiler, through the copper conduit will be introduced into the host steam, steam through the gas exchange valve into the cylinder, pushing the piston to do the work, the piston crankshaft and the gas exchange valve crankshaft gear linkage, control of air intake and exhaust process. Specifications: Size:(MM):220X100X197 Net Weight:1.7kg Gross weight(with packing):2.1kg Boiler outer diameter:68mm Boiler capacity:167ml Piston Diameter:14mm Piston Stroke:12mm Flywheel diameter:78mm Flywheel material: aluminum alloy Ventilation valve material:H59 brass Crankshaft wheel material:H59 brass

• Cylinder bore is 14MM, piston stroke is 12MM, cylinder liner and piston are made of brass, as long as the steam engine is equipped with a large enough air source, this large cylinder design can provide considerable torque and power.
• With aluminum alloy CNC molding, the biggest advantage of this design is to reduce the error brought about by the assembly of multiple parts, a molding of the main body is not only extremely solid structure, the whole machine can also be controlled to a higher level of precision.

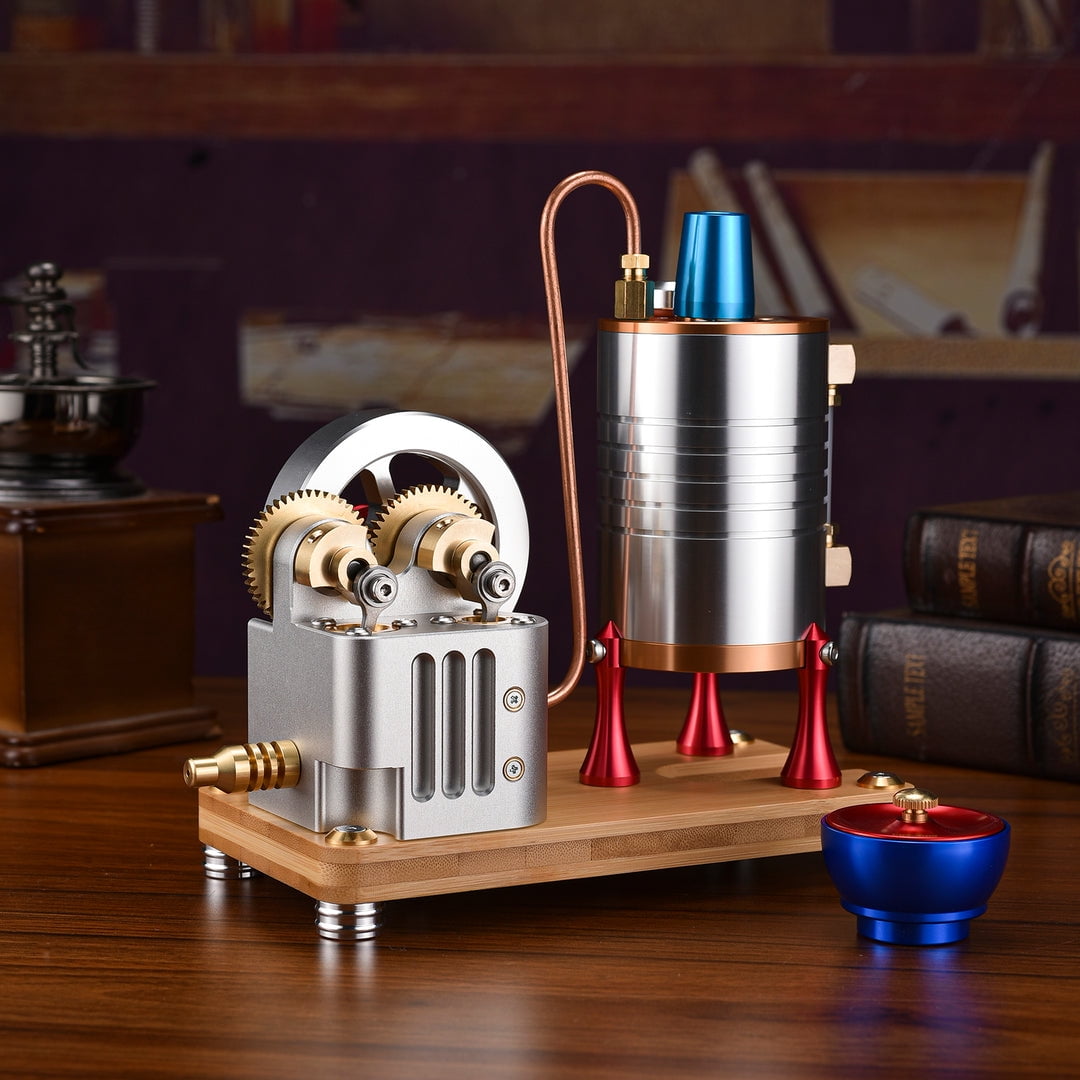

• The redesigned alcohol lamp eliminates the wick, and liquid alcohol is filled into the alcohol bowl to ignite the alcohol directly.
